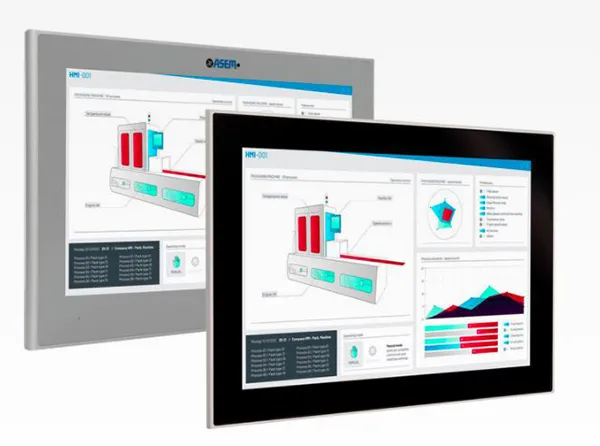

QT3500 & HT3500
QT3500 & HT3500
FANLESS PANEL IPCS WITH INTEL® KABY LAKE U
HIGHLIGHTS:
• TFT LCDs in 12.1” and 15” in 4:3 aspect ratio, 17” and 19” in 5:4 aspect ratio and 12.1”, 15.6”, 18.5”, 21.5”, 24” in Wide aspect ratio
• Resolution up to Full HD
• Aluminum (ALU) and aluminum True Flat (TF) front panels with resistive touchscreen
• Aluminum and glass True Flat panels with multitouch projected capacitive touchscreen (TFM)
• Stainless steel True Flat (TFX) front panels with resistive touchscreen
• Intel® Celeron® 3965U dual-core 2,20 GHz, Intel® Core™ i3-7100U dual-core 2,40 GHz, Intel® Core™ i5-7300U dual-core 2,60 GHz and Intel® Core™ i7-7600U dual-core 2,80 GHz processors of Kaby Lake generation
• RAM up to 16GB
• Fanless IPCs
• Built-in UPS with external battery pack (optional)
• Available in SL version with reduced depth, S0 version with the possibility to install additional interfaces and S1 version with one PCI or PCIe expansion slot
• Available with additional RVL interface for remotation of the DVI-D and USB 2.0 signals up to 100m (optional)
• Integrated UBIQUITY software for remote assistance via end-to-end VPN connection
• UNIQO software for modern HMI, IIoT gateway, and Industry 4.0 applications (optional)
