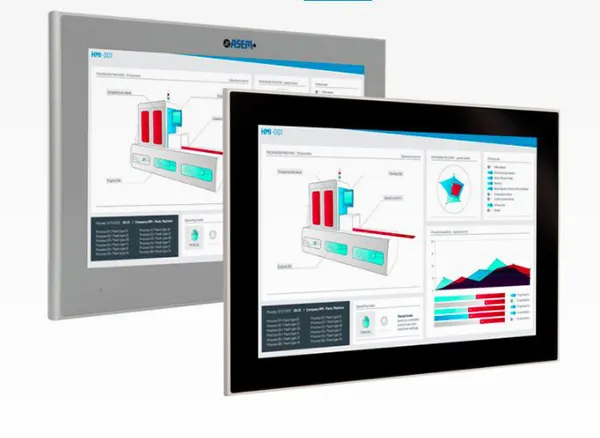

QT2200 & HT2200
QT2200 & HT2200
FANLESS PANEL IPCS WITH INTEL® BAY TRAIL PLATFORM
HIGHLIGHTS:
• TFT LCDs in 10.4”, 12.1” and 15” in 4:3 aspect ratio, 17” and 19” in 5:4 aspect ratio and 10.1”, 12.1”, 15.6”, 18.5”, 21.5”, 24” in Wide aspect ratio
• Resolution up to Full HD
• Aluminum (ALU), aluminum True Flat (TF) and stainless steel True Flat (TFX) front panels with resistive touchscreen
• Aluminum and glass True Flat panels with multitouch projected capacitive touchscreen (TFM)
• Intel® Celeron® J1900 quad-core 2,00 GHz processors of Bay Trail SoC generation
• RAM up to 8GB
• Fanless IPCs
• Built-in UPS with external battery pack (optional)
• Built-in supercapacitors µUPS, with 512kB MRAM for retentive data management (optional)
• Available in SL version with reduced depth, S0 version with the possibility to install additional interfaces and S1 version with PCI or PCIe expansion slot
• ATEX certification for QT-TFM versions (optional)
• Integrated UBIQUITY software for remote assistance via end-to-end VPN connection
• UNIQO software for modern HMI, IIoT gateway, and Industry 4.0 applications (optional)
• CODESYS software for control, motion and CNC SoftPLC applications (optional)
