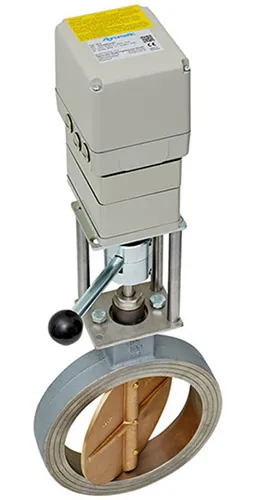

NV 5 – NV 6 Part-Turn Actuator

230 V AC, 115 V AC, 24 V AC, 400 V DS, 24 V DC

(further electrical currents on request)

(former types: WAN5, WAN5 A, WAN5 DC, WAN5 A-DS, WAN5 DS, WAN6, WAN6 DS)

• Wide torque range

• Wide range of positioning times

• Constant positioning times under fluctuating loads

• Large number of auxiliary position switches possible

• Custom shafts possible

• Solid metal housing

• Maintenance-free gearbox

• Operates in any position

The NV5 – NV6 series was created from the N5 – N6 series. The primary objective was to fulfil a customer requirement for an actuator with integrated position sensing directly on the output shaft. A spacer ring created sufficient space to fit a potentiometer or an absolute encoder utilizing Hall effect sensing technology. Our solution means it is now possible to deploy a TUV-approved potentiometer for ratio control systems to DIN EN 12067-2:2004-06.

To satisfy customer demands to increase the service life of ratio control systems the rated torque was reduced and the bearings in the intermediate gearbox strengthened. These measures considerably increase service life of this part-turn actuator.
