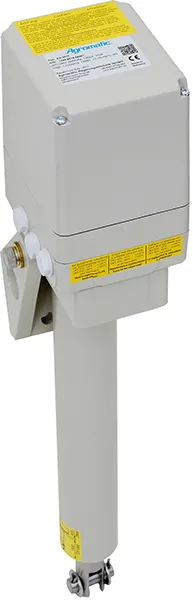

KA Linear actuator
KA Linear actuator
Positioning force: 600 - 5,000 N
Stroke range: 150 - 1,100 mm
Positioning time: 1.3 mm/s - 6.7 mm/s
Supply voltage: 230 V AC, 115 V AC, 24 V AC, 24 V DC
(special voltages on request)
Housing / hood: Die-cast zinc / corrosion-resistant die-cast aluminium
Degree of protection: IP 54, (optional IP 65 /IP 66)
Ambient temperature:
-15°C to +60°C
(optional -40°C to +100°C)
Series KA (formerly WAK-A)
