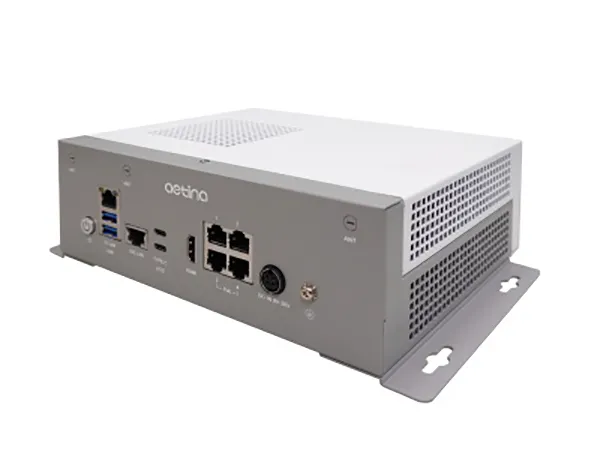

AIE-KX11-12-21-22

AIE-KX11-12-21-22

• Supports NVIDIA® Jetson AGX Orin™ 32GB/64GB module

• Up to 275 TOPS of AI performance

• Wide input voltage range from 9 to 36VDC

• 1 x M.2 B-Key/1 x E-Key/1 x M-Key slot

• 1 x GbE, 1 x 10GbE, and 2/4 x IEEE 802.3af GbE PSE ports

• Supports Innodisk Out-of-Band Remote Management Module

• Operating Temperature -25°C ~ +70°C

Overview

● 8 x AI performance enables AI inference with low latency

NVIDIA Jetson AGX Orin module offers up to 275 TOPS, 8 times more than NVIDIA® Jetson AGX Xavier™ 32GB module. Built in 2048 NVIDIA® CUDA® cores and 64 Tensor Cores, NVIDIA Jetson AGX Orin 64GB module enables server-class AI inference at the edge with low latency.

● Comprehensive M.2 expansion and LAN ports

AIE-KX11/12/21/22 is a system with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. For network, on-board 2 or 4x PSE ports support 2 or 4x POE cameras, and 1x10GbE port offers data speeds up to 10 billion bits per second, 10 times faster than traditional GbE standard.

● Wide input power and operating temperature for various embedded applications

To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIE-KX11/12/21/22 supports operating temperature ranging from -25°C to 70°C and wide input power from 9 to 36VDC.
