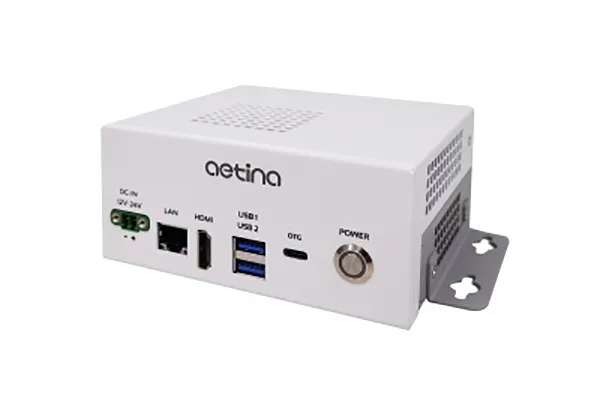

AIE-KO21-31 AIE-KN31-41
• Supports NVIDIA Jetson Orin™ NX module
• Up to 100 TOPS of AI performance
• Wide input voltage range from 12 to 24VDC
• Supports external 128GB M.2 2242 NVMe and storage expansion
• Supports EdgeEye that allows to remotely monitor edge devices
• Supports recovery and backup function
• Operating temperature -25°C ~ +70°C
Overview
● Up to 80 x AI performance enables AI inference in the smallest Jetson form factor
The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor.
● Sufficient M.2 for internal and external storage expansion
AIE-KO21/31 and AIE-KN31/41 are edge computing systems, built in 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. To avoid insufficient data storage for edge computing, AIE-KO21/31 and AIE-KN31/41 support external 128GB M.2 2242 NVMe with fast data transmission.
● Wide input power and operating temperature for various embedded applications
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation,AIE-KO21/31 and AIE-KN31/41 support operating temperature ranging from -25°C to 70°C and wide input power from 12 to 24VDC.
