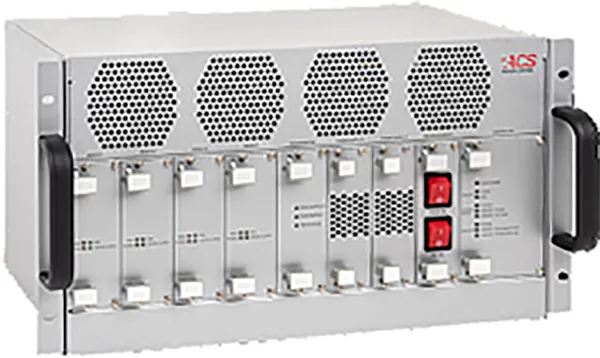

Up to 8 Axis Analog Command NanoPWM Drive Module

The NPArm is a modular, configurable drive solution designed to meet the needs of OEMs with nanometer-level multi-axis motion control applications using 3rd party motion controllers providing commutated analog current commands. It leverages powerful servo control algorithms and NanoPWM technology to maximize motion system performance, offering a better performing and more reliable alternative to linear drives.

Key Specifications

• Command Type: +/-10V Commutated Current
• Drive Axes: Up to 8
• Drive Supply Input: 100-240Vac
• Bus Voltage: 48 or 96Vdc
• Max Current Output Per Axis: 13.3/40A
• Mounting: Rack
• Functional Safety Options: STO
• Proprietary ACS Feature Options: NanoPWM

Key Capabilities

• Servo Control and Drive Technology
• Machine Safety and Uptime
