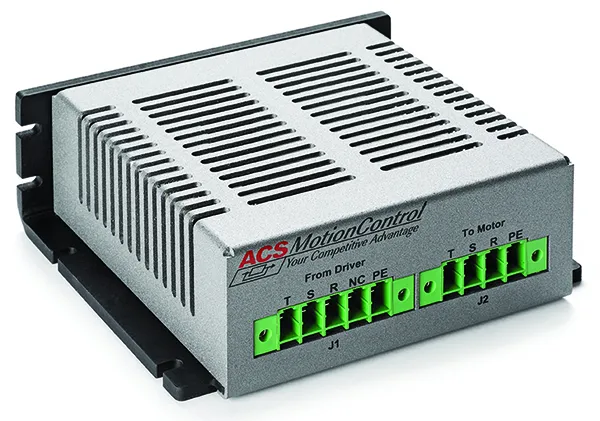

MC4U-MF-560V Reduce PWM Switching Noise

The MC4U-MF-560V is a PWM noise filter designed for OEM machine builders using ACS PWM drive products in highly noise sensitive applications.

Key Specifications

• Attenuates common and differential mode noise induced by PWM switching
• Suitable for three-phase motors
• Max input/output voltage: 440 V (peak, Vrms)
• Max input/output current: 20/40 A (continuous/peak, A peak of sine)
• Mounting options: Rack or panel
• Dimensions (WxDxH) 140 x 127 x 52 mm
