ACS Motion Control Inc.

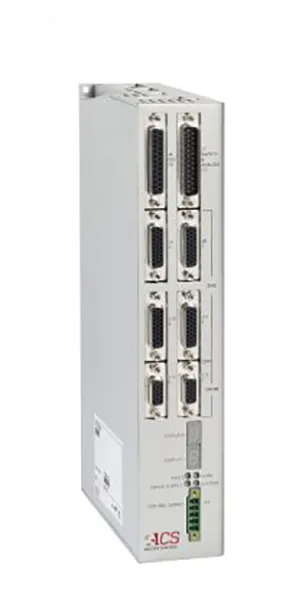

NPA Analog Interface Servo Drives

The NPApm is designed to meet the needs of OEMs with nanometer-level multi-axis motion control applications using 3rd party motion controllers providing commutated analog current commands. It leverages powerful servo control algorithms and NanoPWM technology to maximize motion system performance, offering a better performing and more reliable alternative to linear drives.

Key Specifications

• Command Type: +/-10V Commutated Current
• Drive Axes: 1 or 2
• Drive Supply Input: 12 - 100 Vdc
• Bus Voltage: Equal to Vin
• Max Current Output Per Axis: 13.3/40A
• Mounting: Panel
• Functional Safety Options: STO
• Proprietary ACS Feature Options: NanoPWM

Key Capabilities

• Servo Control and Drive Technology
• Machine Safety and Uptime
