Accu-Router Inc

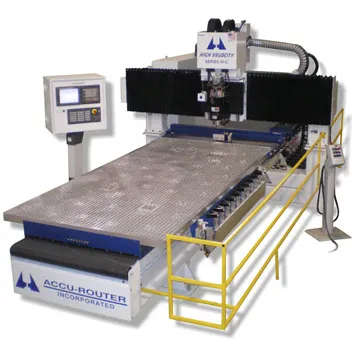

Series III-3-Axis

Series III (3-Axis): Flagship Model for High Production Machining

• Available with either newly fabricated structural components or re-acquired (steel base, bridge, enclosures and aluminum table)

• Green CNC: customer can provide used Accu-Router or competitive brand for upgrade, or we can source on their behalf

• Table sizes range from 4x8’ to 5x12’, and/or twin or inline shuttle (up to 6’ x 25’)

• High speed ballscrew assemblies, including a 50 mm OD spin-the-nut model on the X axis, & THK linear rails;

• Spindle: manual collet, push-button quick change, or automatic (rack or carousel)

• Optional programmable electronic drill (32mm centers)

• Speeds up to 3,000 in/min (XY), 800 in/min (Z)

• Customizable holddown: vacuum, rollers, flip pods or combination thereof

• Numerous options for enhanced material squaring and workflow, up to fully-integrated load/unload

• Latest Fanuc electronics for optimal cycle time, datacom & operator convenience

• Accu-Router provides post-processor for interfacing to most popular software (Mastercam, Plataine, SigmaNEST etc.)
