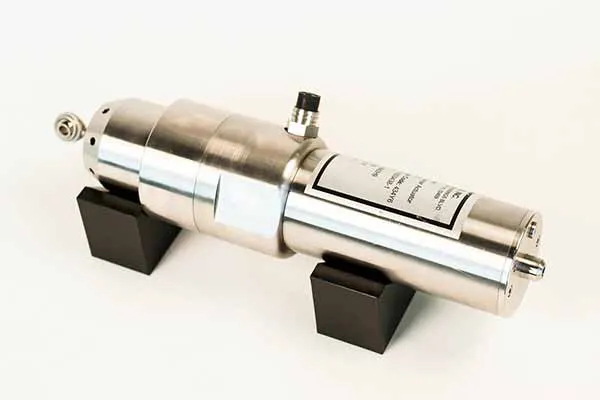

3500 Series Subsea Linear Actuator

3500 Series Subsea Linear Actuator

3 Material Compositions

The 3500 Series linear actuator is available for ordering in aluminum, stainless steel or titanium construction, depending on project application and requirements.

12” Stroke Length

A generous 12" total stroke length allows for ample inward and outward movement patterns, which can be controlled via the software management system.

IP69K Rated

The 3500 Series meets the IP69K rating to provide total protection from water and dust ingress and steam-jet cleaning, as well as many other subsea conditions.

150+ Hours Tested

Our dedicated team of test engineers run the actuator through a rigorous series of tests to validate performance under simulated environmental conditions.

General Specifications

• Output force over 500 lbs
• Linear speeds over 2" per second
• Stroke length 4" to 12"
• Brushless DC motor
• Oil-filled - self-contained - compensated

Operating Conditions

• Voltage 12 32 volts DC
• Operating depth greater than 10,000 ft
• Operating temperature range: -20°C to 65°C
• Storage temperature range: -30°C to 85°C

Current Draw at 24 V DC

Available Materials

• Grade 5 - Titanium
• 316 - Stainless Steel
• 6061 - Aluminum - Black

Onboard Motor Driver & Servo System

• Configurable current limits, power, and speed
• RS-232 & RS-485 serial interface
• Optional Analog, Modbus or CAN Bus
• Contactless non-wearing absolute position encoder
• Does not require homing
• 0.005" accuracy
