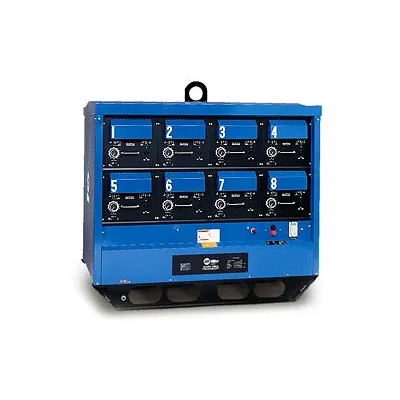

Mark VIII-2

Top Features

• Multioperator welding system
• Drives eight modules from a single main transformer
• Each welding module features remote control
• Wide range of amperage settings
• Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Air Carbon Arc Cutting, Flux-Cored (FCAW)

Control capabilities, and a wide range of amperage settings. Modules can be easily paralleled for extra welding power. The Mark VIII®-2 operates 24 hours a day with exceptional productivity and durability. Housed in a rugged steel enclosure, this performer has repeatedly proven its ability to withstand the punishment of the worst weather and construction site elements.

Rated Output:
(per module) 200 A at 40 VDC, 60% duty cycle
Main Transformer: 800 A, 100% duty cycle or 1600 A, 25% duty cycle
DC Welding Amp Range:
(per module) 35 - 300 A Input Voltages: 230/460/575 V
Maximum OCV: 80
Input at Rated Output: 230V 170 A
460V 85 A
575V 68 A
kVA 68 A
KW 68 A
Weight: 4,050 lb (1837 kg)
Dimensions: H: 70.25"" (1784 mm) W: 72"" (1829 mm) D: 40"" (1016 mm)           Features
MagAmp technology - MagAmp technology provides good arc and puddle control and offers years of reliable operation. The tough mechanical components handle the most demanding work environments.
Eight welding modules - Each module offers up to 300 amps output, or parallel modules for extra welding power. Each module can be connected for either DC straight or reverse polarity.*
Multiple capabilities - The Mark VIII-2 can handle Stick, DC-TIG welding, and wire welding (FCAW and MIG) with a voltage-sensing feeder. You can also use this one unit for Air Carbon Arc cutting and gouging.
Steel frame - Rugged and durable enclosure protects system
115 VAC duplex receptacle - Supplies 10 amps of auxiliary power.
*Consult ANSI Z49.1, Section 4 and OSHA, 29 CFR, subpart Q before connecting for both straight and reverse polarity.

Applications

• Shipbuilding Maintenance
• Construction Rental fleets
• Fabrication Petro chemical
• Training facilities
