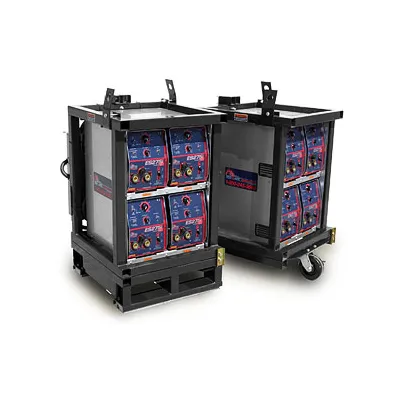

ES275i Multi-Operator Paks

Top Features

• Built to Red-D-Arc Extreme-Duty Specifications
• Available in 4Pak and 8Pak Configurations
• Touch-Start TIG allows DC TIG welding without high-frequency starting
• Processes: Stick (SMAW), TIG (GTAW), Multioperator, Air Carbon Arc Cutting

275 amp @ 35% duty cycle, constant current, DC, inverter welder with both single- and three-phase, 50/60 Hz voltage input. Outstanding E6010 and E7018 performance using up to 7/32” diameter electrodes that enables both whip or drag techniques.

DC Amperage Range: 5 - 275 A Stick/TIG
Rated CC Output: 200 A at 28 VDC, 100% duty cycle
250 A at 30 VDC, 60% duty cycle
275 A at 31 VDC, 35% duty cycle
Voltage Input: 208/230/460/575/1/3/60
220/380/400/415/440/1/3/50
Weight: 54.5 lb (24.7 kg)
Dimensions: H: 13.6"" (345 mm) W: 9"" (229 mm) L: 20.25"" (514 mm)

Voltage Input
Individual Welders: 208/230/460/575/1/3/60, 220/380/400/415/440/1/3/50 4Pak and 8Pak Multioperator with DP120 Panel: 460/575/3/60

Features
Touch-Start TIG allows DC TIG welding without high-frequency starting
Adjustable Arc Force and Hot Start switch for enhanced welding control
Potentiometer-type remote control
Light-weight and compact design
No single-phase de-rating
Meets IP23S environmental rating
Extreme-Duty environmental protection
Manufactured under ISO 9001 certification
Paks are compact enough to fit through a 36” wide pedestrian door
Tweco style output terminals
10’ long, 8 AWG input cord for all 3 phase voltages
