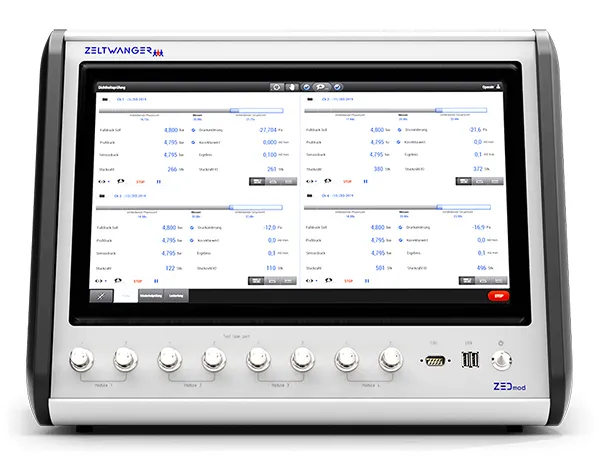

ZEDmod

ZEDmod

FOR PARALLEL TESTING ON MULTIPLE CHANNELS

The further development of the MMS is our solution for complex leak and function tests.

Thanks to the modular design and the ZEDsatellite extension, parallel testing on up to eight measuring circuits is possible.

ZEDmod offers you the highest technical standards within a completely newly developed software.

ACCESSORIES (OPTIONAL)

APPLICATION EXAMPLES

Automotive: Complete engines, cylinder heads, gears, heat exchangers, control electronics, batteries, lines, valves, fuel cells, pumps...
Medical technology: Catheters, dialysis filters/boxes, rinsing/hose systems, secretion canisters, syringes, external lungs...

Packaging/cosmetics: dosing pumps, plastic bottles, cartridges...
Household appliances: water switches/pumps, gas valves/fittings, stoves, compressors...
General industry: cylinders, safety/non-return valves, couplings, grippers, ball valves, seals ...

PRODUCT FEATURES

Control unit: PC-based control with powerful multi-core CPU and Windows Embedded 7
Slots for up to 4 measurement modules
17″ TFT color display with touchscreen
Graphic representation of the measurement process per channel
Data storage > 1,000,000 test results
> 1,000 freely configurable test programs
self-test function
statistics function
Automatic test pressure monitoring
Electronic pressure regulator
Leak simulation connection for connecting a test leak or leak calibrator
Sequential tests/parallel test
Automatic volume determination with a reference leak
Control of ZEDsatellite

CONTROL OPTIONS

INTERFACES

VGA: for connecting an external monitor
USB and Ethernet interface: e.g. B. for data export in CSV, XML or SQL (test programs, results)
RS232 interface: e.g. B. for the leak calibrator
Dimensions (H x W x D): 530 x 440 x 440
Weight: approx. 30-40 kg
Power supply: 24 VDC (+10 / -5%) 5 A
Test medium: compressed air (free of oil and water according to ISO 8573-1 class 3)

Technical Specs
