GOOD LEAK TESTING STARTS WITH THE BASICS

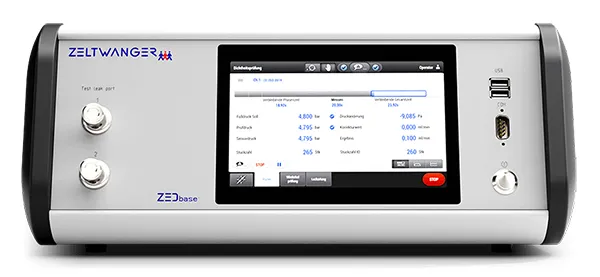

The ZEDbase⁺ is an upgrade of the ZEDbase with a new selection of intelligent standard additional functions. This enables you to easily adapt the leak testing system to your individual testing requirements.

The device can be set up and operated easily thanks to the intuitive user interface with many standard functions.

ACCESSORIES (OPTIONAL)

• Test leak
• Leak calibrator
• Barcode scanner
• External ventilation valve
• Temperature compensation
• Keyboard

APPLICATION EXAMPLES

• Automotive: Complete engines, cylinder heads, gears, heat exchangers, electronic control units, batteries, lines, valves, fuel cells, pumps, etc.
• Medical technology: Catheters, dialysis filters/boxes, flushing/hose systems, secretion containers, syringes, external lung machines, etc.

• Packaging/cosmetics: Dispensing pumps, plastic bottles, cartridges, etc.
• Household appliances: Water distributors/pumps, gas valves/fittings, stoves, compressors, etc.
• General industry: Cylinders, safety/non-return valves, couplings, grippers, ball valves, seals, etc.

PRODUCT FEATURES

• PC-based control with powerful multi-core CPU and Windows Embedded 7
• 5″ TFT color monitor with touchscreen
• Graphic display of the measuring procedure
• Data storage > 1,000,000 test results
• > 1,000 freely configurable test programs
• Self-test function
• Statistics function
• Automatic test pressure monitoring
• Electronic pressure regulator
• Leak simulation connection to connect a test leak or leak calibrator
• Sequential tests/parallel testing (on 2-channel devices)
• Automatic volume detection using a reference leak
• ZEDsatellite control

CONTROL OPTIONS

• PROFIBUS/PROFINET* Ethernet (Modbus)
• Barcode control (RS232) RS232 (Modbus)
• Configurable digital inputs and outputs*

INTERFACES

• VGA: To connect an external monitor
• USB and Ethernet interface: e.g., for file export in CSV, XML
• RS232 interface: e.g., for the leak calibrator
• Dimensions (H x W x D): 175 x 410 x 425 mm
• Weight: approx. 12 – 15 kg
• Power supply: 24 VDC (+10 / -5%) 5 A
• Test medium: Compressed air (oil and water-free according to ISO 8573-1 class 3)
