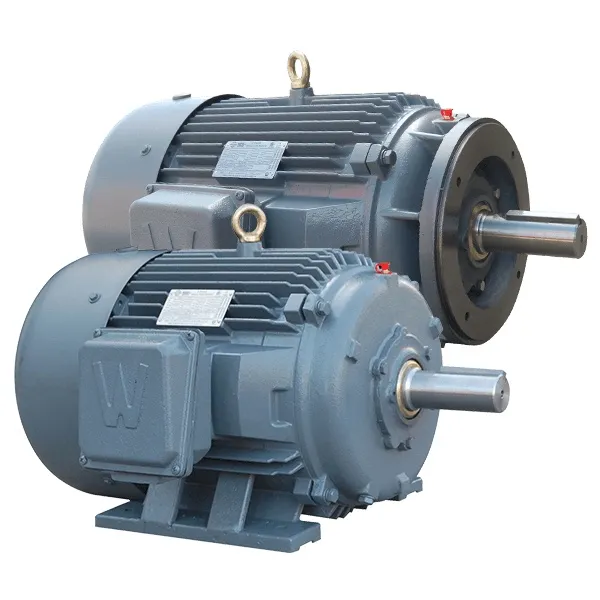

Premium Efficiency Severe Duty motors

Premium Efficiency Severe Duty motors

WorldWide Electric Premium Efficiency Severe Duty motors are reliable, high performance motors well-equipped to power anything from pumps, fans, compressors, blowers, and hydraulic power units to crushing, hammer mill, and aggregate processing equipment. Available with horsepower ratings from 1 to 600 HP, “PEWWE” motors feature a TEFC enclosure, IP55 protection, oversized bearings, and inverter-grade magnet wire. The WorldWide Electric Premium Efficiency Severe Duty motor is an excellent choice for any severe duty application.

Features

• 208-230/460 Volt, 60 Hz
• 460 Volt, 60 Hz (449T-586/7 Frame)
• Totally Enclosed Fan Cooled (TEFC) Enclosure
• IP55 Protection
• Rigid Base or C-Face with Feet (TC)
• 1.25 SF (1-200 HP)
• 1.15 SF (250-600 HP)
• Class F Insulation
• Premium Efficiency
• Inverter Duty, 10:1 CT / 20:1 VT at 1.0 SF (1-400 HP)
• Inverter Ready, 3:1 CT / 6:1 VT at 1.0 SF (450-500 HP)
• CSA Certified, Class 1, Division 2, Groups A, B, C, D (1-400 HP)
• DOE/EEV CC006A
• Oversized Bearings
• Suitable for 50 Hz Operation with 1.0 SF
• Heavy Gauge Rolled Steel Fan Cover
• Models with Insulated Bearings in Opposite Drive End (ODE) Available
• Metal Clad V-Ring Seals
• Spike Resistant Inverter-Grade Magnet Wire, Per NEMA MG1 Part 31
• Standard motor is gray in color. Limited stock is available in green (PEGWWE) or blue (PEBWWE).
