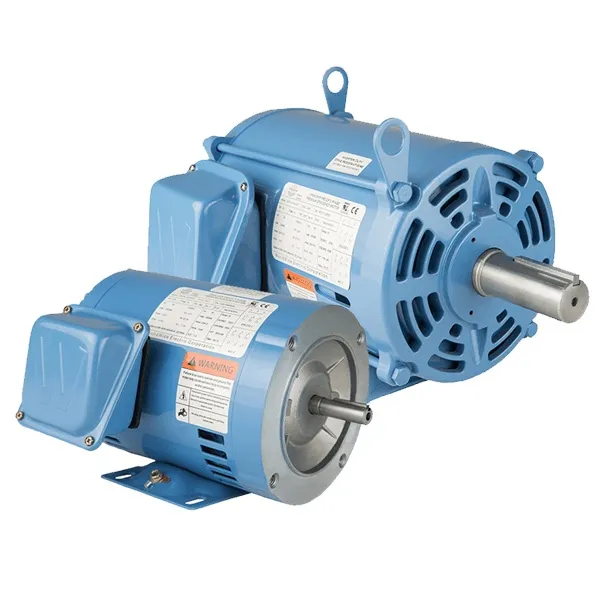

Open Drip Proof (ODP) motors

Open Drip Proof (ODP) motors

WorldWide Electric Open Drip Proof (ODP) motors are designed and engineered for use in HVAC and refrigeration equipment, air compressors, and general purpose installations where cooler-running, non-enclosed motors are ideal. WorldWide Electric Premium Efficiency ODP motors are available in horsepower ratings from 1/2 to 125 and feature IP23 protection and double vacuum pressure impregnation for winding insulation.

Features

• 208-230/460 Volt, 60 Hz
• 190/380 Volt, 50 Hz
• Open Drip Proof (ODP) Enclosure
• Rolled Steel Frame (1/2-50 HP)
• Cast Iron Frame (60-125 HP)
• IP23 Protection
• 1.15 SF (1.0 SF for 50 Hz Applications)
• Class F Insulation
• Rigid Base (Exception: 56 Frame has C-Face with Removable Base)
• Premium Efficiency
• Class B Temperature Rise
• Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF)
• Inverter Grade Magnet Wire Meets or Exceeds NEMA MG-1 Part 31
• Pre-Drilled and Tapped Drive Endbells on 143T Frame and Up to Accept Inpro® Current Diverter Rings; No Machining Required, Simple and Easy Installation
• Exclusive Double Vacuum Pressure Impregnation (VPI) Insulation System
• Double Drilled Feet to Accommodate Mounting Flexibility (143T-404T)
• 254T and larger are suitable for F1 to F2 conversion
