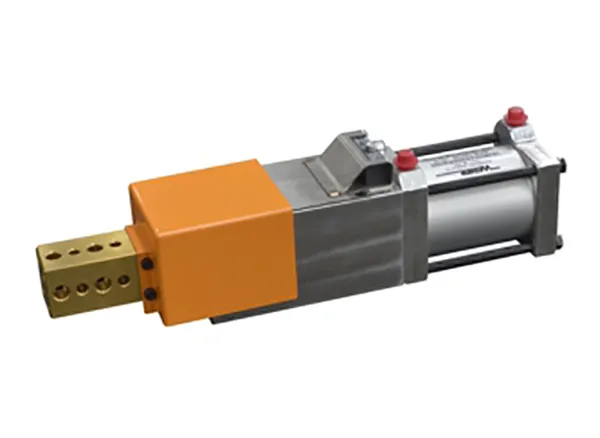

UB4 Unibody Shot Pin

UB4 Unibody Shot Pin

UB4 features a pneumatic cylinder with integrated anti-rotate ram. Applications include retractable locating pin, straight acting clamp, part stop, probe slide and wedge lock.

40mm square ram, standard strokes: 25, 50, 75mmNon-standard strokes: 100, 125, 150, 200mmOptions include rap or rigid coupler, solid state cylinder switch or World Switch, aluminum ram, detent, and air purge port
