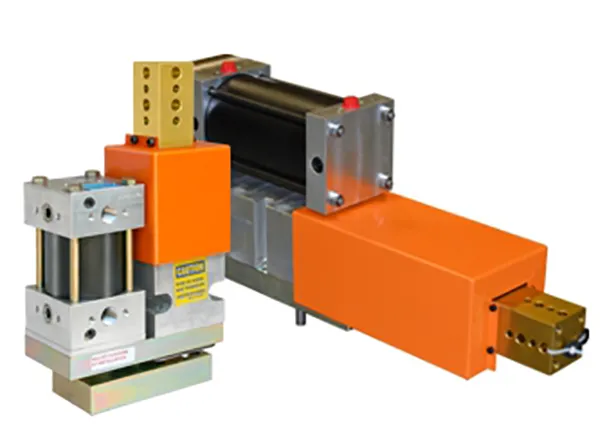

SB4 & SB6 Side-by-Side Shot Pins

SB4 & SB6 Side-by-Side Shot Pins

SB4 & SB6 shot pins feature an independent pneumatic cylinder parallel to the ram, providing a more compact unit. Applications include retractable locating pins, part stops, probe slides and straight clamps. Mounting is provided for cylindicator style prox switches (not included).

SB4: 40mm square ramSB6: 60mm square ramStandard strokes: 25 to 200mmRap or Rigid coupler
