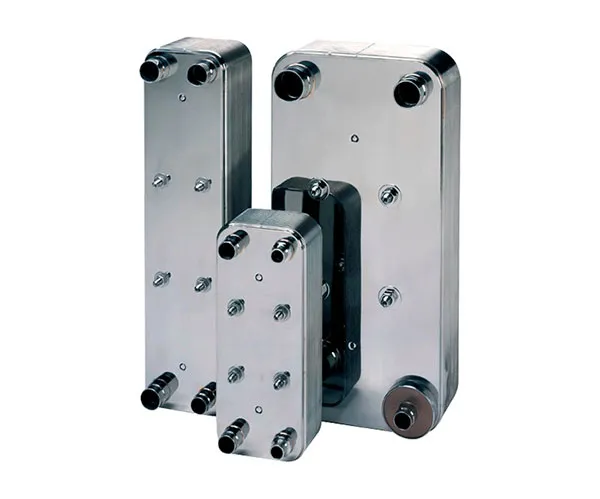

Brazed heat exchanger

Brazed heat exchanger

BIG PERFORMANCE IN A SMALL PACKAGE

The size of the WCR brazed heat exchanger ranges anywhere from 50% to 80% smaller than other types of heat exchangers on the market today. It requires less floor space due to the high thermal efficiency of the stainless steel. And, because its plates are brazed together at high temperatures, it allows the heat exchanger to be compact, leak-tight, and rugged. That’s the kind of durability and efficiency that helps set the WCR brand apart.

Features:

• Easy to Insulate
• Properly Sized Refrigerant Connections
• Tud Bolts for Installation and Mounting
• Hig Performance Heat Transfer Surface
• Easy Sweat ™ Connections
• Totally Sealed Construction
• Built-in DX Distribution Devive for Proper Capacity and Stability (CH and SC Models)

Brazing Materials

• Copper
• Nickel
• CuproNickel

Plate Materials

• 316L Stainless Steel
• 254 SMO Marine grade Stainless Steel

Port Diameters:

• From 3/8″ to 2-1/2″
• British Standard Tapered Pipe (male)
• Butt Weld
• Flare – 45 Degree
• NPT – (male and female)
• Rota Lock Spud
• SAE – (male and female)
• Socket Weld
• Sweat Fittings – (English and Metric)
• Victaulic

Nominal Plate Size

• 3″ x 8″
• 5″ x 12″
• 5″ x 10″
• 10″ x 20″
