Flow Regulator I 500 Series

Flow Regulator I 500 Series

DESCRIPTION

AN IN-LINE, SLIP-IN CARTRIDGE, PRESSURE-COMPENSATED, NONADJUSTABLE FLOW REGULATOR INTENDED FOR FIXED DISPLACEMENT HYDRAULIC CIRCUIT APPLICATIONS.

OPERATION

REVERSE FLOW PASSES THROUGH THE CONTROLLING ORIFICE AND IS UNCONTROLLED PRODUCING A PRESSURE DIFFERENTIAL OF 120 PSI MAX. AT 150% OF CONTROLLED FLOW.

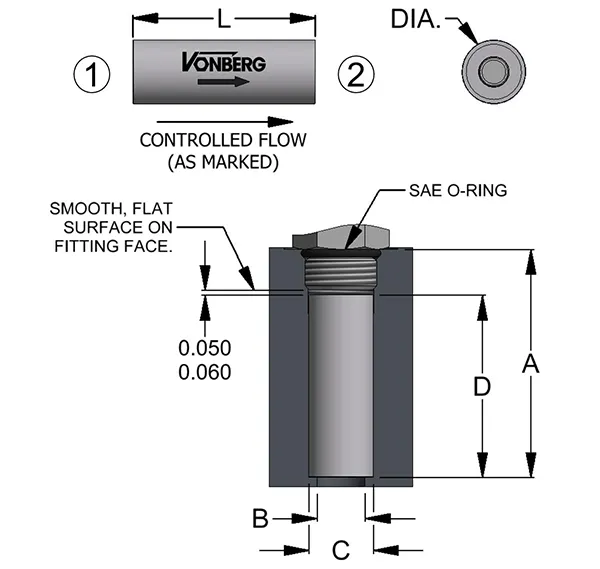

CARTRIDGE BODY SEATS ON SMOOTH, FLAT SURFACE OF FITTING IN THE REGULATED FLOW DIRECTION.
BORE DEPTHS ASSUME THE USE OF A STD. O-RING BOSS CONNECTOR WITH THREAD LENGTHS BASED ON SAE J514.
IN THE CONTROLLED DIRECTION THIS REGULATOR WILL MAINTAIN A CONSTANT FLOW RATE THROUGHOUT A SPECIFIED PRESSURE RANGE.

FEATURES
