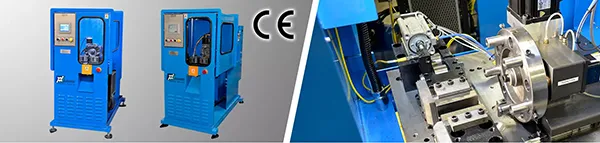

End Forming Machines-1000 SERIES

HYDRAULIC

1000 Series Hydraulic Five Stroke End Former Machine for most endforms up to 1” (26mm) diameter tube*This 5-hit Hydraulic End Forming Machine (1005HY) has 6.5 tons of ram force, 9 tons of tube clamp force, and is capable of handling several unique applications. New to this machine is an increased ram velocity of 11″ per second, compared to the previous 8.5″ per second, which provides users with a cycle rate improvement. With the addition of two ram strokes, this 5-hit machine provides more versatility and flexibility than our previous 1003HY model.

ELECTRIC

1000 Series Electric Four Stroke End Former Machine for most endforms up to 1” (26mm) diameter tube*The 1004EL Electric End Forming Machine has 7 tons of ram force and 9 tons of tube clamp force, similar to our other 1000 series end formers. New to this 4-hit machine is an increased ram velocity of 14″ per second, compared to the previous 9″ per second, which provides users with a cycle rate improvement. The latest industry innovations are now included as standard features, rather than options, to ensure our customers are operating as efficiently as possible.
