Vonberg Valve, inc.

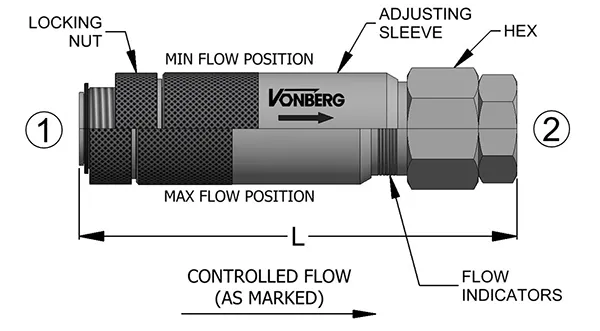

Flow Regulator 3 I 000 Series

Flow Regulator 3 I 000 Series

DESCRIPTION

A FULLY ADJUSTABLE, INLINE STYLE, PRESSURE-COMPENSATED, FLOW REGULATOR INTENDED FOR FIXED DISPLACEMENT HYDRAULIC CIRCUIT APPLICATIONS.

OPERATION

• COUNTERCLOCKWISE ADJUSTMENT TO INCREASE FLOW.
• THIS REGULATOR WILL MAINTAIN A CONSTANT FLOW RATE FROM (1) TO (2) THROUGHOUT A SPECIFIED PRESSURE RANGE.
• REVERSE FLOW PASSES THROUGH THE CONTROLLING ORIFICE AND IS UNCONTROLLED PRODUCING A PRESSURE DIFFERENTIAL OF 120 PSI MAX. AT 150% OF CONTROLLED FLOW.

FEATURES

• HYDRAULIC FLUIDS - GENERAL.
• ALUMINUM AND STEEL BODY, STEEL INTERNALS.
• UNIQUE AXIAL ROTATION FOR FULL ADJUSTABLITY.
• SURGES INTERNALLY DAMPENED FEATURE IS OPTIONAL FOR LOAD LOWERING APPLICATIONS.

SPECIFICATIONS
