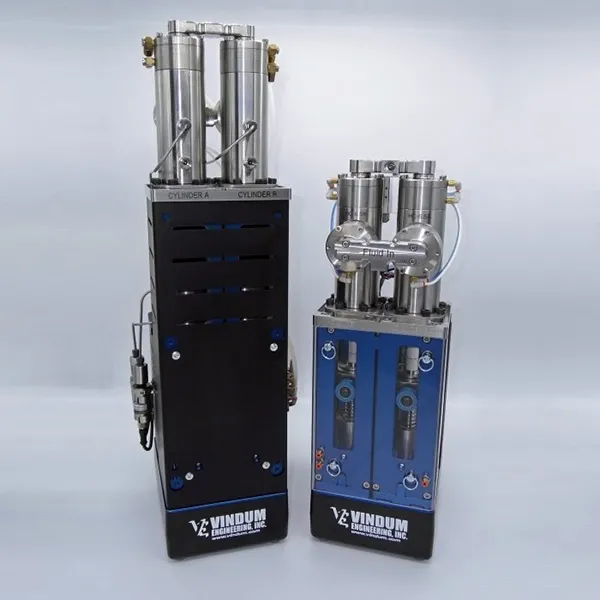

VP-Series High-Pressure Metering Pumps

VP-Series High-Pressure Metering Pumps

Vindum VP-Series pumps are dual-piston high-pressure metering pumps that deliver ultra-precise, pulse-free, continuous flow in either constant-pressure or constant-rate modes, at up to 25,000 psi. High-temperature versions allow wetted parts of the pump to be heated to 320°F (160°C). Leading-edge design, compact size, and attractive pricing make these metering pumps perfect for a wide range of applications.

Features include:

• Pulse-free continuous flow standard (pressure or rate modes)
• Flow rate range: 0.1µL/min—97ml/min (varies by model)
• Extreme pressure capability: 0 – 25,000 psi (varies by model)
• 13 modes: rate or pressure deliver, receive, bi-directional
• Advanced pump-control software included (PC-based)
• Several control/communication options (see Control Options tab)
• Low maintenance design, easy to clean
• Ultra-compact footprint (19”H x 6”W x 9”D)

VP-Series Pump Applications:

• Oil & Gas Coreflood and PVT experiments
• Pilot Plant or Process Development
• Corrosive Fluid Environments (Hastelloy option)
• Pulse-free, ultra-precise fluid metering
• Life sciences – Biotechnology, Pharmaceuticals
