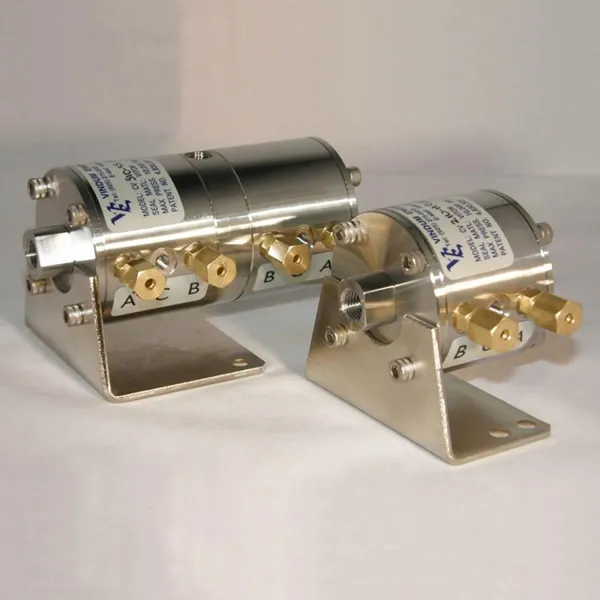

Vindum CV Automated High-Pressure Valves

Vindum CV Automated High-Pressure Valves

The features, durability, and reliability of CV-Series valves make them a cost-effective solution for the most exacting laboratory high-pressure flow-control requirements. The patented constant-volume design is only one of the outstanding features of these 2-way and 3-way valves. Originally developed for pulse-free fluid flow in dual-piston displacement pumps, the design is widely used in a range of high-pressure applications.  CV valves use 1/8” tubing or 1/4" tubing, depending on the valve model.

Features of Vindum CV Valves

• Range of models: to 25,000 psi (CV-225) and 160C (CV-210, 410, and 510)
• Standard 2-way or 3-way models, custom designs available
• Rapid open/close (~0.1 second) using compressed air (70-100 psi)
• Remote actuation using solenoid pilot valve (12V or 24V)
• Low internal volume and no trapped fluid
• Durable and easily rebuildable
• Gas-tight seal, able to hold a vacuum
• Variety of O-ring seal materials available

Applications for CV-Series Valves

• Remote or centrally controlled systems
• High temperature processes or experiments
• Oil & gas core flooding and PVT experiments
• Chemical or refining pilot plant systems
• Process development systems
• Multi-piston displacement pumps (pulse-free flow)
