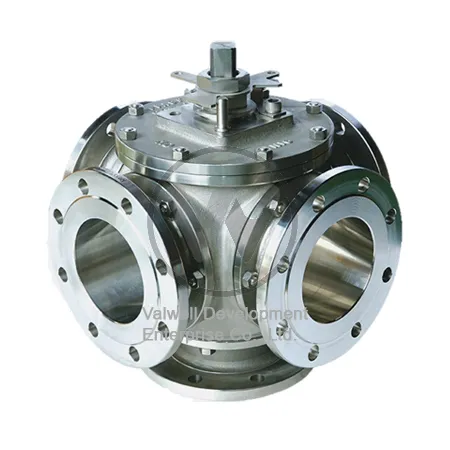

Multiple Way Flanged Ball Valves

Multiple Way Flanged Ball Valves offer 3~5 way flow control with several flow plan. Our company also contains the Y shape 3-Way ball valves. Customers can be cost effective and reduce the number of valves in the piping system by using one valve to replace two or more valves.

Specifications of Multiple Way Flanged Ball Valves:


  • Size: DN 32 ~ DN 300
  • 3-Way / 4-Way / 5-Way Flow Control
  • T-Port, L-Port and Double L Port
  • Pressure Rating: ANSI CL 150/300 & EN 1092-1 PN 16/40
  • Fire Safe Design
  • Ball: CF8M Solid Ball
  • Materials: Carbon and Stainless steel, Special Alloy steel (Special material is available by request.)


Y-Shape 3-Way Flange Ball Valve Feature:


  • Piggable
  • Trunnion Mounted
  • 120° PORT
  • Full Bore
  • Low Torque, easy to operate with a lever or actuator/gear.
  • Each Valve is customized to meet the customer’s request.


Applications:


  • Shipbuilding / Repair
  • Marine / Offshore
  • Tanker
  • Chemical / Petrochemical
  • Refining
  • Power Generation
  • Oil / Gas
  • Water / Wastewater Treatment
