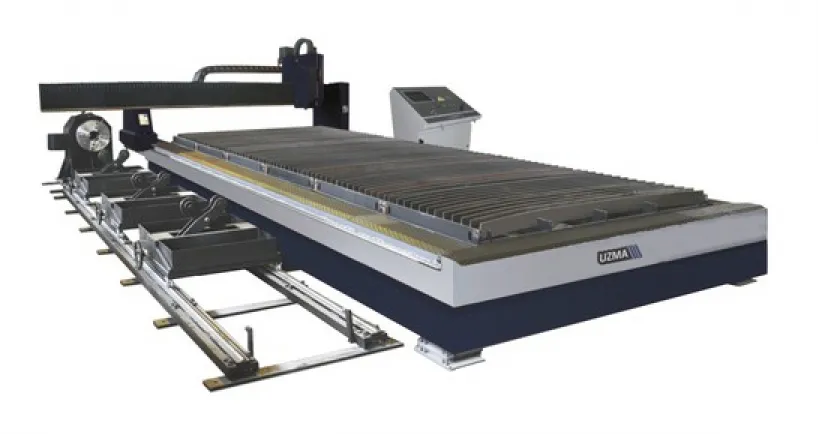

CNC Plasma Cutting Machines CPL Line

CNC Plasma Cutting Machines CPL Line

Features

Uzma CPL Series Plasma Cutting Machines has a double side gear drive and it’s designed with strong steel construction for positioning capability at high speeds. You will have a precise cutting ability at X-Y axis with linear guide ways and 30m/min speed. It has ability to maintain constant at the same height and the quality, with the Arc-THC control sensor.

Standard Accessories

  • Hypertherm Edge Pro CNC Control Unit

  • Windows based CNC control unit.

  • Plasma Power Source Hypertherm

  • Manual Gas Consol- Hypertherm

  • Cutting plate alignment function with Laser

  • Manual or Automatic cut selection

  • Torch positioning with laser light

  • Automatic ignition torch system

  • Automatic Torch High Control (Uzma Sensor THC)

  • Torch collision protection.

  • +/- 45° manual bevel cutting

  • Dual side Helical rack, pinion and AC Servo motors on X axis which gives smooth and fast motion

  • Synchronized drive gives smooth and without vibration motion.

  • Brushless AC servo motors on all axis

  • High precious positioning possibility with linear sledge system on all axis.

  • Platform type on bridge side or Portable CNC control panel

  • CNC control outputs/inputs for vacuum table & filtering unit

  • High vacuuming capability with lower energy consumption

  • Independent cutting table system

  • Multi head Plasma and multi head oxy fuel cutting possibilities.

  • +/- 0,02 mm positioning accuracy.

  • +/- 30m/min positioning speed

  • Visual opportunity to cut comfortable with 15” TFT LCD Touch Screen Monitor

  • Positioning capability at high speeds through double-sided gear drive

  • Ability to maintain constant at the same height and the quality with arc control sensor

  • 30.000 mm / min speed with linear quid ways. Linear and precise cutting ability at X and Y Axis

  • Possibility of sorting hundreds of pieces on the plate with single click

  • Opportunity to see the duration of the cut and the percentage of the waste on the screen

  • Bridging System; cutting dozens of pieces with a single blasting

  • Ability to cut different sizes with minimum space and without any quality losses

  • Remnant plate stock management database with optional Auto Nesting program which means economy in time and material.



Machine can be manufactured on requested dimensions from 1,5 x 3meter till 6 x 36 meter

1 piece of plasma cutting head and additionally Plasma head & Oxy torches can be added

Sensitive and rigid body resistance to high speeds

Y motion system : Linear Rail system and precision gear Helical Rack, pinion

Double driver rack linear rails

X Axis : Parallel connected to the surface with rack and linear rails

Linear Rails : INA (Germany) or COMTOP or TBI (Taiwan)

Helical Rack-Pinion system : ATLANTA (Germany)
