IntelliRay

Expand AllIntelliRay Product Summary

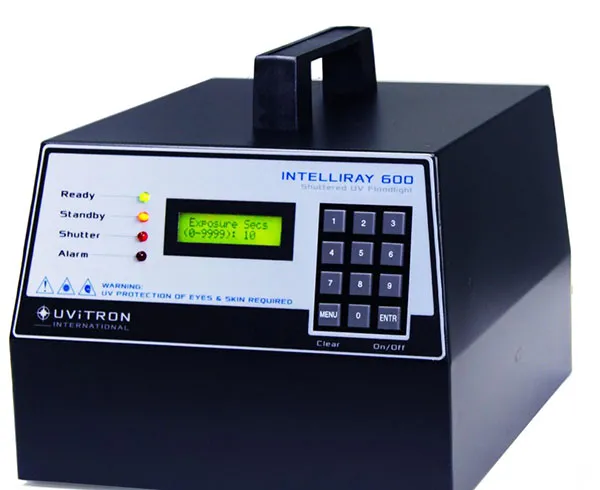

The IntelliRay is a compact, completely programmable UV flood curing system. All system components of the microprocessor-controlled UV flood curing system are integrated into a small lamp head, which can be easily mounted on the optional Rayven benchtop curing chamber or anywhere on a factory floor, with virtually no cabling or remote power boxes required. Just mount the head, connect the AC line cord, and start timed exposure curing.

The system contains an integrated retractable shade type shutter, which allows for repeatable exposure timing and shields the user from UV rays. The system’s LCD display and digital keypad make programming and monitoring of curing operations a snap. The long-life arc lamp and parabolic reflector illuminate an 8 x 6” curing area with evenly distributed UV light. The arc lamp is powered by the state-of-the-art UV Power-Plus Lamp Driver. The head features a convenient carrying handle and a sliding height adjustment bracket.

The Uvitron IntelliRay is available in a 400W or higher intensity 600W version. For a larger version of this system, see the IntelliRay Quad.
