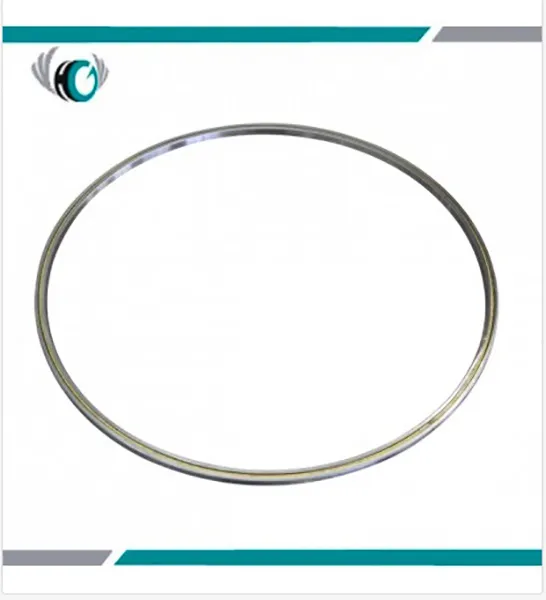

THIN SECTION FOUR POINT CONTACT BEARING HKAA SERIES (3/16" X 3/16")
X-TYPE--Thin section bearingsSeals: NOSeries:HKAA,HKA, HKB, HKC, HKD, HKF, HKGinner: 1.000inch(25.4mm)-20inch(508mm)outer: 1.375inch(34.925mm)- 22inch(558.8mm)Weight:0.012kg-7.53kg
Open Style Bearing was used widely in the Textile printer, Medical devices, Rotary tables, Radar, Communication, Aircraft, Aerospace, Astronomy instrumentation, Industrial robotics, etc. Because of its characteristics, such as small space, lightweight, and low friction.Our Four Point Contact Bearing bore diameters range from 1.000 inches to 20.000 inches. Series range from 0.1875 X 0.1875 inch to 1.000 X 1.000 inch in cross-section. In these series, the material of rings could be GCr15 and stainless.
HKAA series
WeightKg
Type
Dimension(inch/mm)
Basic Load Ratings(N)
d
D
L1
L2
Radial
Thrust
Cor
Cr
Coa
Ca
HKAA010X
1.000
25.4
1.375
34.925
1.142
29.0
1.236
31.4
1290
1100
3250
1650
0.012
HKAA015X
1.500
38.1
1.875
47.625
1.642
41.7
1.736
44.1
1780
1320
4450
2050
0.018
