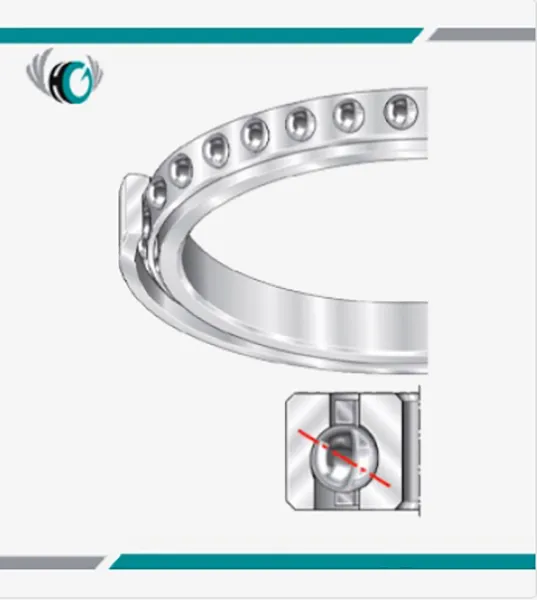

THIN SECTION ANGULAR CONTACT HKAA SERIES BEARING (3/16" X 3/16")
A-TYPE--Thin section bearingsSeals: NOSeries:HKAA,HKA, HKB, HKC, HKD, HKF, HKGinner: 1.000inch(25.4mm)-20inch(508mm)outer: 1.375inch(34.925mm)- 22inch(558.8mm)Weight:0.011kg-6.89kg
Open Style Bearing was used widely in the Textile printer, Medical devices, Rotary tables, Radar, Communication, Aircraft, Aerospace, Astronomy instrumentation, Industrial robotics, etc. Because of its characteristics, such as small space, lightweight, and low friction.Our Angular Contact Bearing bore diameters ranging from 1.000 inches to 20.000 inches. Series range from 0.1875 X 0.1875 inch to 1.000 X 1.000 inch in cross-section. In these series, the material of rings could be GCr15 and stainless. Pls kindly check the detailed model for your choice:
HKAA series
WeightKg
Type
Dimension(inch/mm)
Basic Load Ratings(N)
d
D
L1
L2
L3
Radial
Thrust
Cor
Cr
Coa
Ca
HKAA010A
1.000
25.4
1.375
34.925
1.142
29.0
1.236
31.4
1.274
32.4
1510
860
4310
2000
0.011
HKAA015A
1.500
38.1
1.875
47.625
1.642
41.7
1.736
44.1
1.774
45.1
2130
1060
6130
3250
0.017
