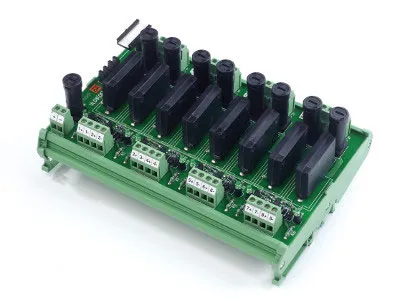

Solid State Relay Module for DC Output

Solid State Relay Module for DC Output

Application

Solid State Relay Modules deliver electrically clean, Opt-isolated, Noise free Output used for Interfacing PLC/DCS Digital Outputs to field or field devices. Used for high switching frequency application.

Component Specification

SSR: Input - 24VDC, Output - DC Load.SSR Socket: Available on request.Terminals: Screw type suitable for 2.5Sq.mm conductor.PCB: Glass Epoxy double side PTH with Lacquer Coating.

Technical Specification

General Data

• No. of Channel: 2, 4, 8, 16.
• Test Voltage: 2.5kVrms.
• Ambient operating Temp. : Max 60° C.
• Relative Humidity: Max 90% (Non- Condensing).
• Tropicalisation: Lacquer coating on PCB.
• Identification Tag: Provided.
• Mounting: Universal Din Rail Mountable.
• Standard/Approvals : PCB: Type tested STQC, IEC 61373, ANSI IPC 2221 & 2222, MIL 275B
• Terminals: UL/CE & CSA Standard
• SSR: UL/CSA

Input Data

• Operating Voltage*: 24VDC +/- 10%.
• Input Current/ Channel: 15mA @ 24VDC.
• Protection: Polarity Protection.
• Indication/ Channel: 3mm Green LED.
• Looping (Sinking/Sourcing): Interchangeable using flexible jumpers.
• Terminals: Screw type.
• Conductor size: 0.25 -2.5 sq.mm flexible.
• Insulation Stripping: 7.0 mm length.

Output Data

• Nominal Line Voltage: 24 VDC.
• Max Switching Voltage: 60 VDC.
• On state Output Current rating: Min – 300mA, Max - 3 Amp.
• Max Turn on time: 50u Sec.
• Max Turn off time: 100u Sec.
• Snubber Protection: NA.
• Peak 1Cycle surge: 30 Amp.
• Output Leakage Current: 1 mA (Approx).
• Snubber/Fuse Protection: Available on request.
• Terminals: Screw type.
• Conductor size: 0.25 - 2.5 sq.mm flexible.
• Insulation Stripping: 7.0 mm length.

Other notes

Screw less Terminals: Available on request for selective Relay Modules.
