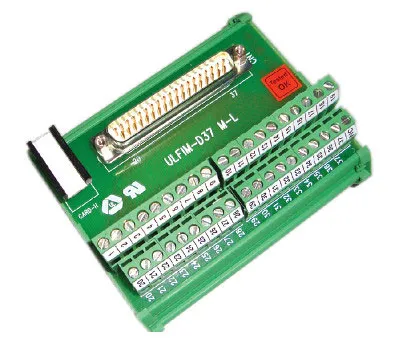

Interface Module-D-Sub to Terminals

Interface Module-D-Sub to Terminals

Application

Passive Interface Modules are used to convert the conventional wiring into Modular Wiring. It consists of D sub Male / Female connector at one side and screw type/ screw less terminals at the order side.

Component Specification

Plug-in type: D-Sub male/female available in Connector 9/15/25/37/50 Position.Terminals*: Screw type suitable for 2.5Sq.mm conductor.PCB: Glass Epoxy double side PTH with Lacquer Coating.

Technical Specification

General Data

• No. of Positions: 9, 15, 25, 37, 50.
• Test Voltage: 500V between each channel.
• Ambient operating Temp. : Max 80° C.
• Relative Humidity: Max 90% (Non- Condensing).
• Tropicalisation: Lacquer coating on PCB.
• Identification Tag: Provided.
• Mounting: Universal Din Rail Mountable.
• Standard/Approvals: PCB: Type tested STQC, IEC 61373, ANSI IPC 2221 & 2222, MIL 275B.
• Terminals: UL/CE & CSA Standard.

Input Data

• Input side Termination: D Sub male / female Plug-in Type Connector
• Output side Termination: Screw Type
• Max Operating Voltage: Max 60VDC
• Input Current / Channel: 1Amp
• Protection: Available on request
• Indication / Channel: Available on request
