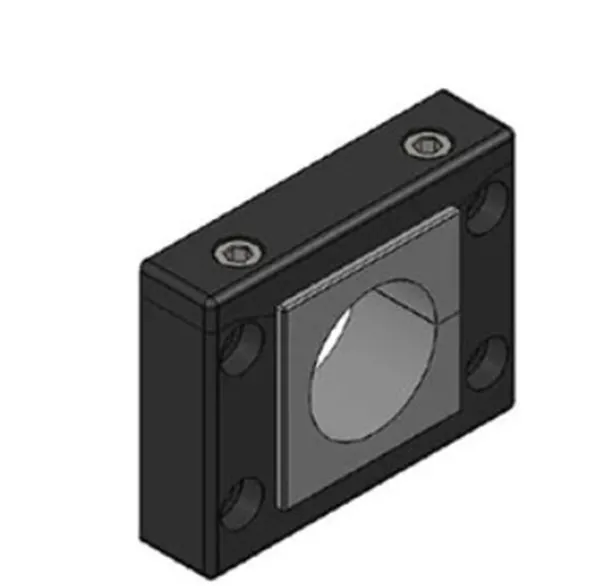

Icotek KEL-ER-B1 Cable Entry Frame - 48206

Icotek KEL-ER-B1 Cable Entry Frame - 48206

Suitable grommets: x KT cable grommets, large
Length: 120 mm
Width: 58 mm
Height: 17 mm
Cut-out length: 46 mm
Cut-out width: 46 mm
Material screws: Sheet steel, galvanically zinc plated
No. of screw holes: 4

Split cable entry frame for routing and sealing pre-terminated cables, providing strain relief for cable diameters from to 16 mm (KT - 15) and 16 to 34 mm (KT 16 34). Due to an injected sealing the KEL-ER range provides protection class IP65.

The new cable entry system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.

Either cut-out of 36 mm or 46 mm in height can be chosen depending on the cables being routed. The KEL-ER-B matches cut-out dimensions of 46 46 mm measuring instruments.

Very easy assembly
High protection class IP65
Warranty on pre-terminated cables remains
Retrofitting and maintenance can be carried out easily and quickly
High packing density, wide variety of frames and grommets
Strain relief according to EN 50262 EN 62444
High stability
Vibration proof

IP protection class: IP65 NEMA rating: NEMA4xMaterial: Polyamide
Color: black (RAL 9005)
Flame class: UL94-V0, self-extinguishing
Temperature: -40 140 degree
Properties: Halogen free, Silicone free, Anti-corrosive (V2A versions)
Mounting type: Screw type mounting
