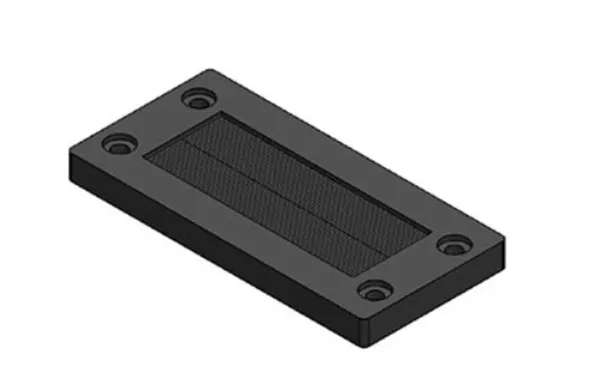

Icotek KEL-BES 16: Cable Pass-Through with Brush Frame - 51510
Length: 120 mm Width: 58 mm Height: 10 mm Cut-out length: 86 mm Cut-out width: 36 mm KEL-BES split brush plates are ideal for routing cables into electrical enclosures, control panels and server racks. The KEL-BES is perfect for cable pass throughs that need to be routed inside raised floors. The KEL-BES frames match the cut-outs for 10-, 16- or 24-pole standard connectors. Advantages: Protects cables against wear Reduced airflow while still filtering out hair, dust and larger particulates Easy and fast assembly IP protection class: IP20 Material: Polyamide Material brushes: Polyamide Color: black (RAL 9005) Flame class: UL94-V0, self-extinguishing Temperature: -20 90 degrees Celcius Properties: Halogen free, Silicone free Mounting type: Screw type mounting Mounting height: 10 mm
