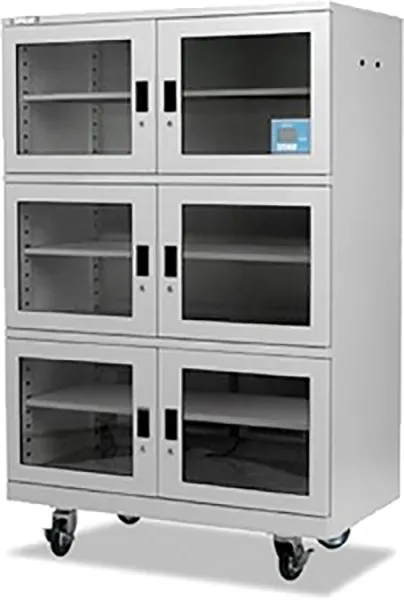

SD+ Series precision drying

SD+ Series precision drying

Dry storage cabinets in the SD Plus series are the newest and highest performance versions of the SD range and fully network compatible. They are equipped with high precision sensors, closed loop regeneration and climate data logging. Safe, low humidity control of less than 2%RH.. Engineered for medium to long-term constant low humidity storage of ≤2% RH, the cabinets are equipped with high-precision sensors and integrated data logger for performance traceability. Closed loop regeneration of the drying units minimizes power consumption and increases efficiency. A second drying unit ensures uninterrupted and redundant drying (SD+ 1104 and 1106 only).

Features

• Maintenance-free U-2000 drying unit with integrated fan
• ESD safe design (IEC 61340-5-1)
• Limit value monitoring (RH; °C)
• Door alarm
• Lockable doors
• Dynamic regeneration
• Integrated data logger
• Includes software for performance traceability
• Ethernet interface
• Regulated relative humidity

Options

• Additional shelves
• Heater (40°C)
• Alarm light

Characteristics

U-2000 series dryer:

RH drying to below 2% RH Regeneration: dynamic

Sensor:

Rotronic sensor, accuracy +/- 0.8% RH

Performance:

30 min recovery time after door opening to below 5% RH

Control:

PLC with limit value input through text displayDoor and humidity alarm

Climate control:

Optional heating up to 40°CForced air circulation

Documentation:

Integrated data loggerClimate data recordingFree Totech Viewer software
