HSD Series maximum process safety

HSD Series maximum process safety

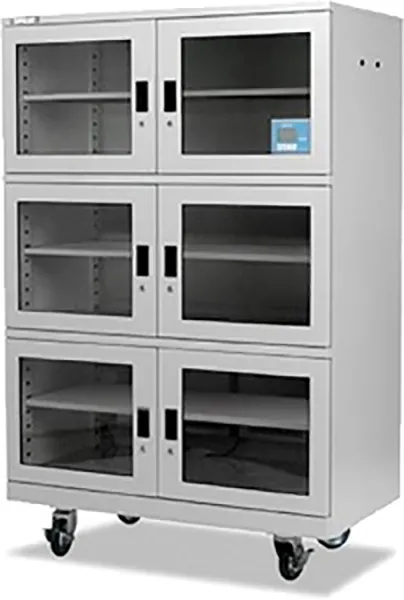

The HSD series of dry cabinets, designed and manufactured in Germany, delivers outstanding drying for moisture sensitive components and PCB’s as a result of a high performance drying unit. This makes it an ideal model for operations that require frequent access. The dynamic 5000 series drying unit reaches very reliable, low humidity values of ≤ 0,5% RH and automatically regenerates if necessary. Humidity, temperature and alarm functions are shown and can be adjusted on a digital display.

Features

• Maintenance-free U-5000 drying unit with integrated fan
• ESD safe design (IEC 61340-5-1)
• Limit value monitoring (RH; °C)
• Door alarm
• Lockable doors
• Regulated relative humidity below 0.5%
• Dynamic regeneration
• Integrated data logger
• Free software with viewer function
• Ethernet interface

Options

• Additional adjustable shelves
• Heater (40°C)
• Alarm light

Characteristics

U-5000 series dryer:

Drying to below 0.5 %RH Regeneration: dynamic

Sensor:

Integrated sensor, accuracy +/- 0.8% RH

Performance:

15 min recovery time after door opening to below 1% RH

Control:

PLC with limit value input through text display or web interface Door and humidity alarm

Climate control:

Optional heating up to 40°C

Documentation:

Integrated data logger
Climate data recording
Free Totech Viewer software
