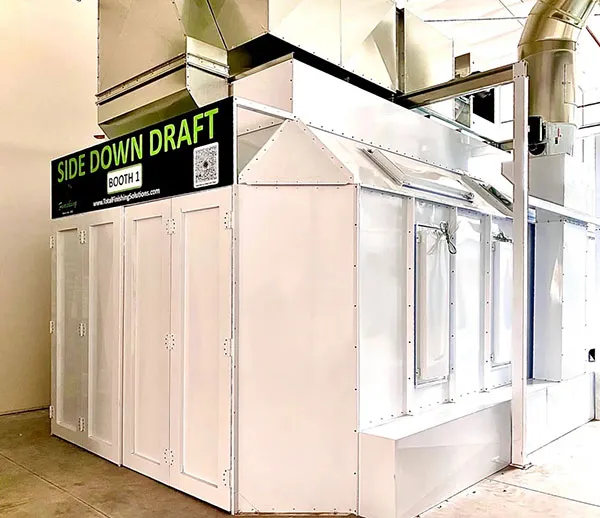

SIDE Downflo spray booth
SIDE Downflo spray booth
The Custom Aire SIDE Downflo spray booth has been designed by TFS in response to a need for a mid-priced booth with high-end performance. The SIDE Downflo paint booth eliminates the need for a pit or basement where construction of this type is not possible and where a raised floor cannot be used due to other limitations such as overhead clearance.
The Custom Aire SIDE Downflo spray booth introduces fresh filtered air evenly over the ceiling of the booth above the vehicle. The air flows smoothly down the sides of the vehicle and then is drawn away from the vehicle toward the walls near the floor. It then passes through the exhaust paint arrestors in the walls where the overspray is trapped and the air is then exhausted and dispersed into the atmosphere.
TFS has partners that have been producing superior spray booths for over 30 years. TFS carries a complete line of standard booths to supply any need and budget. In addition to utilizing the latest in materials and technology, along with computer-aided design, TFS is able to produce custom booths to meet any requirement.
For increased thru-put, and also for use with newer spray paints and coatings, the Custom Aire SIDE Downflo spray booth is designed to be used with the DFM800R heat system. This system has a proven track record for reliability and efficiency on TFS spray booths. Higher curing temperatures required by newer spray formulations are achieved with a unique, TFS designed, 100% fresh air superheating system.
No solvent contaminated air is returned to the booth, which prevents hazing and die-back, virtually eliminating cutting and buffing.
An optional user-friendly and fully automated control panel cycles the booth through the entire Flash, Cure, and Cool cycles without operator intervention. Controls are easily set to accommodate all types of paints and coatings. Digital temperature controls combined with two stage burner modulation assure minimal temperature fluctuations inside the spray booth.
The Custom Aire SIDE Downflo spray booth is available in solid back and drive-thru configurations. It comes with full documentation and all accessories necessary to assemble a fully operational booth.
Note: All of our paint spray booths are California Compliant and Permit acquisition services are available.
