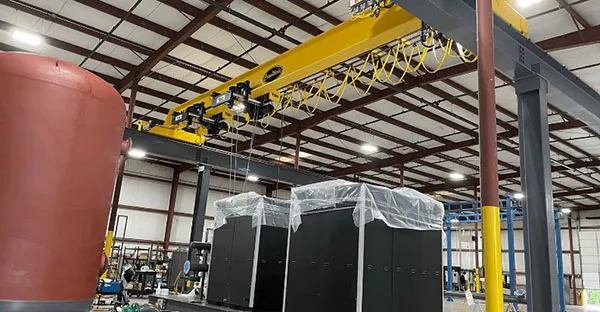

CRANE RUNWAYS

Workstation Runway

Stand-alone workstation bridge cranes are header-braced across both ends. The header and runway beams are connected to the top of the column with a rigid moment connection. This removes the need for knee-braces and other braces, which in turn keeps the workstation free of obstructions and allows for maximum use of the work area. Header-bracing also eliminates the need to brace the crane structure to the building structure, which affords maximum flexibility in runway location.

The bridge rides on the top of the structure, providing maximum hook height. The additional hoist hook height gained by the unique momentary connection and top running design ranges in many cases from 10-24 inches.

• Available in one- thru five-ton capacities
• Runway lengths of up to 50 feet
• Spans of up to 39 feet
• Easy installation, bolt-together construction
• Support columns bolt directly to concrete slab
• Modular design = easy relocation
• Pre-engineered for quick delivery
• Stainless steel food-grade and other stainless non-corrosive systems available
• Complete CAD drawings supplied with each system
• Runway systems designed to AISC specifications
• Pre-engineered and approved by a licensed professional engineer
