Toscano Linea Electronica SL

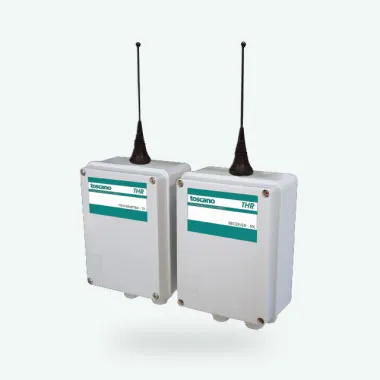

THR1

Transmitter + receiver, UHF band 433MHz, 2 digital I/O, 230Vac / 9-30Vdc power supply + basic aerial.

Power supply: 230Vca, 9…40Vdc (7…40Vdc in LOW POWER mode)

Operating frequency: 433.92MHz

Transmission power: 10mW

Aerial: 50Ω with BNC-type connector

Inputs / outputs:

• 2 voltage-free digital inputs

• 1 level control input with 2 probes

• 2 relay outputs (250V / 5A max.)

• 1 error output (250V / 5A max.)

Battery charge voltage:

• Selector switch in 12V: 14.1V

• Selector switch in 24V : 27.4V

• Battery charge current: 62mA max.

Low battery warning voltage:

• 11.85V with battery connected at input +BAT

• 12.6V cwith battery connected at input +PANEL

Activation frequency in LOW POWER mode: about every 15 seconds

Consumption: 0.8…2.4VA when powered by 230VAC

Dimensions/Weight/IP/Temperature: 195x110x70 mm (HxWxD)/ 1,440g / IP56 / -10º…+55ºC
