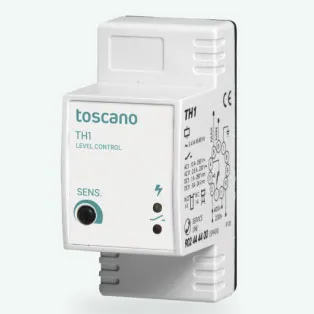

TH1

Level relay for well or reservoir

Level relay for well or reservoir using conductive probes, adjustable sensitivity, 230 / 400V AC bi-voltage, plug-in undecal base, maximum and minimum probes.

• Signaling: TENSION and RELAY

• Working voltage: 240/400 VAC (other voltages, consult)

• Frequency: 50-60 Hz

• Power consumption: 2 VA

• Permissible voltage variations: + 10% -20%

• Responsive sensitivity: Adjustable 3 ... 60 Kohm

• Probe voltage: 12 VAC 50 Hz

• Intensity in probes: 1.2 mA max. shorted

• Maximum terminal section: 2 x 2.5 mm²

Use of contacts:

• AC1: 10 A - 250V AC

• AC11: 2.5 A - 230V AC

• DC1: 1 A - 250V DC

• DC11: 5 A - 24V DC

• Environmental margins: -10º + 60º C

• Approximate weight: 140 g (380 g, including base and 2 probes)
