Thermwood Corporation

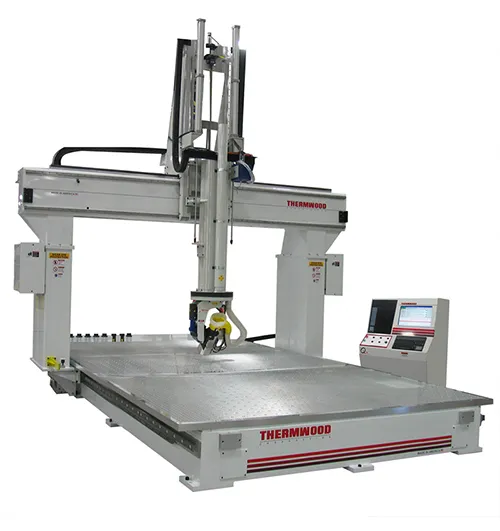

MULTIPURPOSE 70

MULTIPURPOSE 70

Designed for aerospace and composite applications utilizing large/heavy fixtures.

Available Table Sizes:

10'x5', 10'x10', 10'x15', 10'X20'

• 12 HP 24,000 RPM Router with a 4 Position Automatic Tool Changing System (Standard)

• 16 HP 24,000 RPM Router with a 4 Position Bar Style Automatic Tool Changing System (Optional)

• 1 1/2" Thick Solid Aluminum Table (Standard)

• Extended Z Axis: 36" vertical (Optional)

• Extended Z Axis: 48" vertical (Optional)

• Extended Z Axis: 60" vertical (Optional)

• 5 Axis Chip Collection Hood (Optional)

• Four Position Automatic Tool Changer - In Right Side Gantry Leg (Standard)

• Ten Position Rotary Automatic Tool Changer (Optional)

• Twelve Position Tool Bar (mounted to back of table) (Optional)

• Automatic Tool Length Measurement (Optional)

• Automatic Lubrication System (Standard)

• Gantry Lighting System (Optional)

• Accu-Lube Mist Coolant System (Optional)

• Machine Enclosure (Optional)

• Impact Resistant Five Axis Head (Standard)

• Continuous C Axis (Optional)

• Three-Dimensional Laser Compensated Axis Alignment

• Siemens Intelligent Servo Drives Throughout

• QCore SuperControl

• Machine Training and Installation
