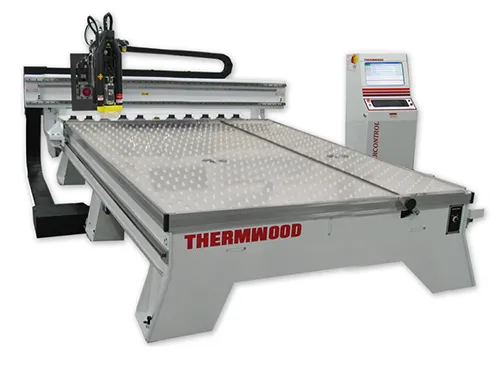

CABINETSHOP MTR

CABINETSHOP MTR

Complete three axis CNC routing systems with single or dual in-line tables for nested base, composite or plastic sheet material.

Available Table Sizes: 5'x10' (1.52m x 3m), 5'x12' ( 1.52m x 3.6m), 7'x12' (2.1m x 3.6m), 7'x20' (2.1m x 6m)

• 12 HP HSD Spindle (3,000-24,000 RPM). Optional 18 HP Spindle

• Fixed Single Steel High Flow Table with Moving Gantry (MTR 21, MTR 30, MTR 36 and MTR 60)

• Dual, Fixed Steel High Flow In-Line Tables with Moving Gantry (MTR 30DT)

• 10 Position Bar Style Automatic Tool Changer (MTR 21 Single Table)

• 16 Position Bar Style Automatic Tool Changer (MTR 30, MTR 36 and MTR 60 Single Table)

• 15 Position Bar Style Automatic Tool Changer (MTR 30 DT, Dual In-line Table)

• At the Head Automatic Tool Changer (Optional)

• Automatic Tool Length Measurement

• Three-Dimensional Laser Compensated Axis Alignment

• Control Nesting

• Siemens Intelligent Servo Drives Throughout

• QCore SuperControl

• Machine Training and Installation
