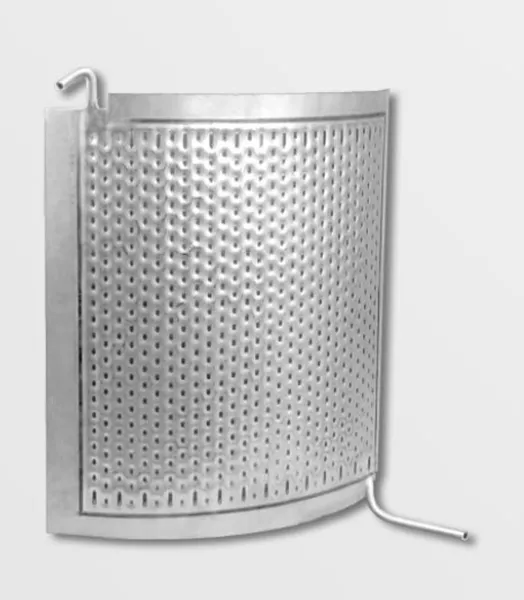

HeetSheet®

HeetSheet tank heating units are constructed of 26-gage type 304 stainless steel, conforming to ASTM A240. The welded waffle style pattern provides multiple flow paths reducing risk of blockage possible with single-flow designs. For temperatures up to 190°C (375°F), Thermon NH non-hardening heat transfer compound is factory applied to the surface of the HeetSheet unit that contacts the tank wall. This is to eliminate air gaps and optimize heat transfer. HeetSheet units are available in multiple sizes and are pre-rolled to conform to the radius of the tank. Stainless steel tubing connections are provided for steam or other heating or cooling media. Customer supplied fittings are used to connect the inlet and outlet tubes to ThermoTube® pre-insulated supply and return tubing. ThermoTube is arranged separately.

FEATURES

Each design is based on known and predictable heat transfer coefficients.

Thermon heat transfer compounds provide high heat transfer rates.

Requires only 1/2 to 1/3 the heating surface area of plate-type coils for like applications.

Pre-rolled units assure quick installation.
