Thermocoax SAS

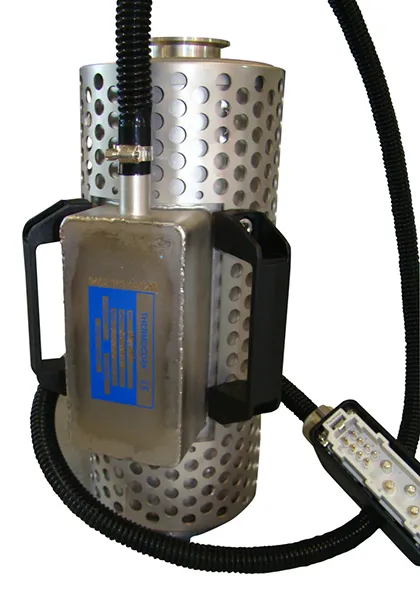

Sterilisation units for aseptic filling machines – H2O2 vaporisers

Sterilisation units for aseptic filling machines – H2O2 vaporisers

ELECTRICAL VAPORISER FOR ASEPTIC FILLING MACHINES

THERMOCOAX electrical H2O2 vaporisers :

• THERMOCOAX is your technical expert partner for your aseptisation process.
• We have been customising, designing and manufacturing H2O2 vaporisers for aseptic filling machines for many years.
• Our technology is exported world wide.
• Our role as leaders of aseptic filling machine manufacturers endows us with solid confidence.
• THERMOCOAX H2O2 electrical vaporisers are used in the “dry” sterilisation processes which calls for spraying the containers with a hydrogen peroxide mist both inside and out.
• We offer a standard version one or two heating-zones.
• Relying on  of our performing innovation and engineering team, we offer our customers the possibility to develop their specific vaporisers that are customised to suit their specific needs.

Technical characteristics of H2O2 vaporisers :

• Material : stainless steel 1.4404, 1.4541
• Heater : Based on Thermocoax mineral insulated cables – vacuum brazed – water tide IP 54 standard
• Operational power and voltage :
  • standard one or two heating zones
  • 3 kW, 6 kW / 230 V
  • 6 kW / 400 V
  • Customised specifications on request
• Temperature range : up to 500°C or higher on request
• Operating conditions : corrosive media, acids and chemicals
• Reduced response time
• Heating elements : cold-end heating element with safety thermocouples for each zone
