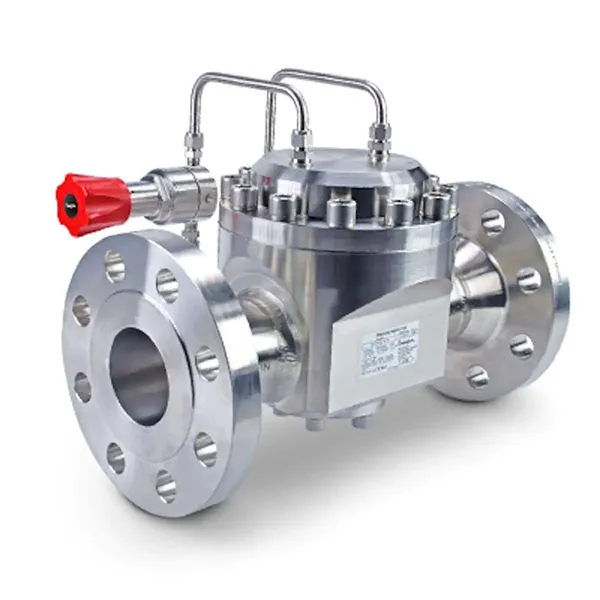

Pressure-Reducing Regulators, Dome-Loaded

Pressure-Reducing Regulators, Dome-Loaded

Pressure-reducing, dome-loaded regulators can meet the needs of a variety of pressure, temperature, and flow conditions.

Pressure-reducing, dome-loaded regulators minimize droop by balancing outlet pressure with dome pressure, enable dynamic pressure control to provide more consistent downstream pressure as flow demand vary, and maintain control safely by balancing the dome pressure against the force of the outlet pressure.

Air-Loaded, Pressure-Reducing Regulators (RA Series)

Specifications

• Choice of dome-to outlet pressure ratios: 1 to 15, 1 to 40, or 1 to 70

Options

• NACE MR0175/ISO 15156-compliant models
• Special cleaning to ASTM G93 Level C
• Gauge connections—choice of 4 configurations
