Special Optics.

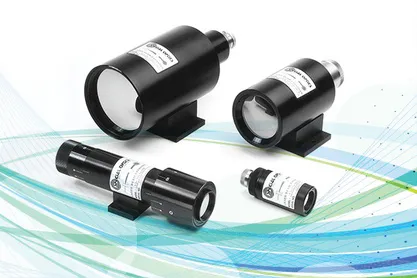

Laser Beam Expanders

Laser Beam Expanders

We offer an extensive range of beam expanders including high power, low power, large aperture, achromatic (dual wavelength), apochromatic, manual zoom, and motorized variable zoom beam expanders covering wavelengths from UV to the IR.

Special Optics’ high performance laser beam expanders feature:

• diffraction limited designs with expansion ratios from 2X to 40X

• input apertures of 1.3 mm to 20 mm and large output clear apertures of 1.3 mm to over 100 mm

• high transmission, low wavefront distortion, specified at single and dual wavelengths from 248nm to 1550nm

• damage thresholds are typically 500MW/cm2

These Galilean design beam expanders provide an adjustable focus for collimation at varying wavelengths, and to control divergence correction and focusing. They are adaptable for complex applications requiring increased power density at the focal point, beam guidance over long distance, dual wavelengths (1064nm and 532nm), high power laser energy, and large aperture needs.

• Typically aluminum construction to minimize thermal distortion

• Designed to be rugged and self-supporting

• Easy to use

• Provide accurate, unobstructed expansion for any collimated input source.
