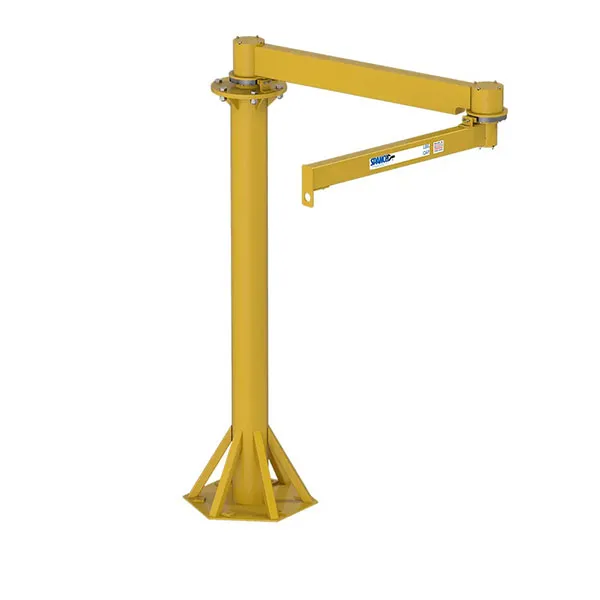

402 Series Freestanding Articulating Jib Cranes

402 Series Freestanding Articulating Jib Cranes

• Crane Rotation: 360° both arms
• Spans: up to 16’
• Capacities: from 150 to 2,000 lbs.

Spanco Articulating Jib Cranes can lift loads around corners and columns, reach into or under machinery and containers, and service virtually any point between the pivot anchor and the far reach of the boom.

Options

• Electrification (to any device supported on the end of the boom)
• Internal piping (for compressed air within the articulating boom)
• Support for vacuum lifters
• Rotation stops
• Portable basesEasy installation at nearly any location
• Offers 360-degree rotation for inner and outer arms
• Anchor bolts are used to secure the baseplate to a reinforced concrete foundation for ultimate stability under load
• The pipe mast’s connection to the hexagonal baseplate is reinforced with six equally spaced gussets

Spanco Articulating Jib Cranes support nearly any type of manipulator, balancer, or hoist. 402-Series Jib Cranes mount directly to your facility floor using mounting plates and anchor bolts. Many systems require only standard six-inch reinforced concrete floors; new foundations are only required for special loading conditions.
