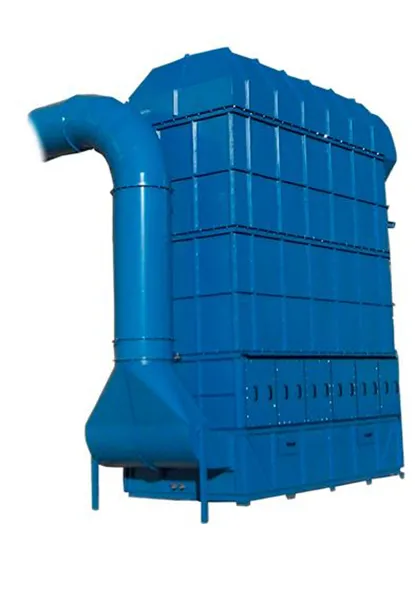

Super-compact system
Super-compact system
A large capacity system that boasts maximum efficiency with low maintenance.
SO.TEC offers an an innovative technology, which has been widely applied and tested both in Italy and abroad, that's designed to treat the fumes produced by hot brass forging presses, the mists produced by automatic machine tools, or the oil mists produced by various industrial processes.
This new technology is capable of both eliminating the pollutants from the air flow and recovering the oil for subsequent reuse (as well as graphite or any other impurities dispersed into the air).
The system consists of two filtration stages:
The first stage separates the oil particles greater than one micron in size, together with graphite or any other impurities present in the air;
The second stage involves the coalescing separation of the submicronic oil particles, which constitute approximately 90% of the total oil in the extracted air, according to the efficiency of separation indicated below:
Efficiency of 99.9% for particles sizes > 1 micron
Efficiency of 99% for particles sizes > 0.5 microns
Efficiency of 95% for particles sizes > 0.2 microns (high efficiency achieved thanks to the use of special Microless® filter elements)
The separation of the submicronic particles provides for an extremely low oil content in the air emissions, with the complete elimination of the typical chimney "plume".
