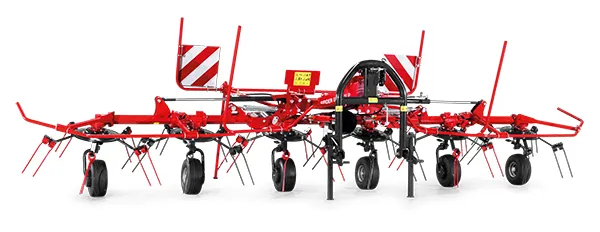

SPIDER ALP
SPIDER ALP
The rotary tedders with four or six rotors are light, robust and very agile. The innovative design of the rotor enables even spreading and turning of forage even in more demanding mountain areas.
The SPIDER ALP rotary tedders are designed to work with tractors with less power on steep terrains and slopes.
The tedders are robust, and their lightweight construction ensures exceptional manoeuvrability. They are intended for small and medium-sized farms and for forage spreading or turning in the mountain areas.
ROTOR ALP
The sophisticated rotor design with smaller diameters prevents damage to the turf and ensures clean forage. Simple folding of the rotors eases the transport, while the spring tines, made of high-quality steel, guarantee a long service life.
1Different lengths of spring tines, with the inner tine being shorter than the outer, prevent ground scratching and forage contamination.
2Robust mounting of spring tines with loss protection.
3The spring tine holders are made of flat HARDOX steel. For the SPIDER 600I6 ALP model, the holders are made of round tubes.
4The main rotor plate is made of 3 mm thick steel.
5Robust gearbox made of ductile iron.
6Rectangular profile.
SPRING TINES HOLDERS
Flat steel spring tines holder with spring tine loss protection in SPIDER 350I4 ALP and 400I4 ALP.
Spring tines holder made of round tube with spring tine loss protection in the SPIDER 600I6 ALP models.
ADAPTATION TO THE TERRAIN
With the jockey wheel, the tedder follows the ground step by step. This ensures that the working height is always set correctly, the turf is protected, and the spring tines have a longer service life. The additional jockey wheel is especially recommended for working on slopes.
