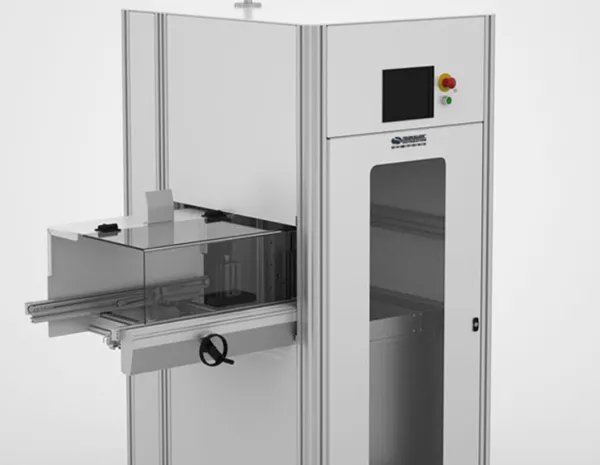

Cimtrak Mini Magazine Loader

Cimtrak® Mini Magazine Loaders are designed to remove product from the end of a surface-mount line and insert it into a magazine. With standard PCB magazines, the machine can unload up to 50 populated boards without operator intervention. The machine can be customized to handle most PCB magazine types.

Simplimatic’s electronics design philosophies have been highly regarded by the electronics industry since 1988 and are known to have an average service life of more than 15 years.

Each electrostatic dissipative Cimtrak® product features:

• Solid conveyor belt construction – Non-spliced, fiberglass-reinforced transmission belts for superior strength
• Reliable DC stepper motors – Virtually service free and allows for precise adjustments to velocity, torque, and acceleration
• Premium rail design – Cimtrak® conveyor features zero gaps between belt and edge to eliminate jams
• Adjustable in-feed tips – Can be lengthened by up to 4’’ for easy install
• Extruded aluminum framework – Provides light and strong chassis
• Industry 4.0 communication – Available with several PLC options and can be configured for smart industry 4.0 communication
